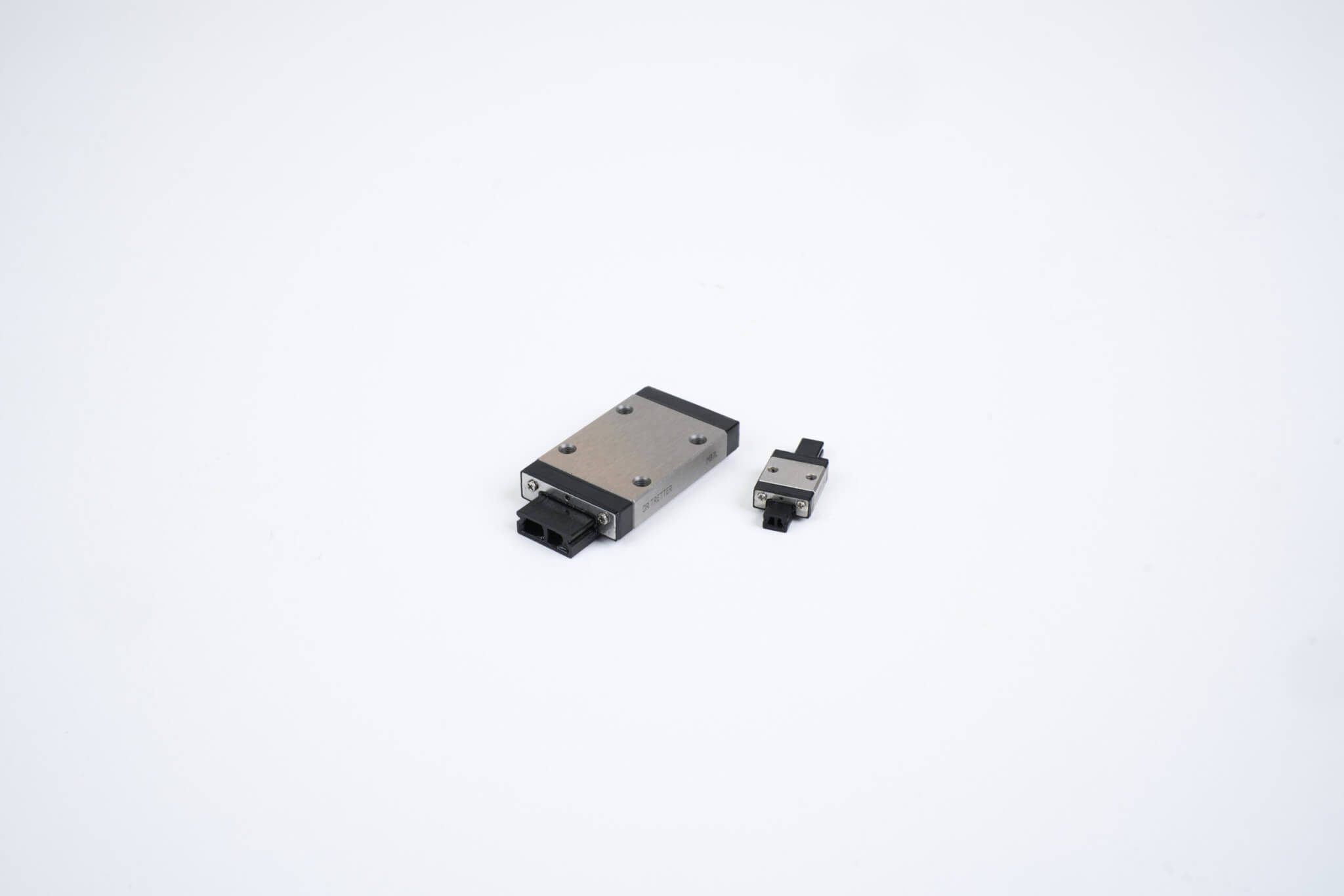

The miniature guides from Dr. TRETTER AG are available in rail sizes 5 to 20, as well as in the standard width and as a wide rail for higher transverse moments. The rails are available in designs that can be screwed in from above or below.
| PRECISION | |
|---|---|
| LIFESPAN | |
| VERSATILITY | |
| QUALITY | |
| PRICE |
| Product series: | TM | TMW |
|---|---|
| Temperature: | -40°C to +70°C |
| Static load rating: | max. 15.6 kN |
| Dynamic load rating: | max. 9.07 kN |
| Traverse speed: | max. 5 m/s |
| Ball rows: | 2-row |
| Stroke length: | up to 2000mm |
| Corrosion-resistant: | yes |
| Sizes: | 03-15 |

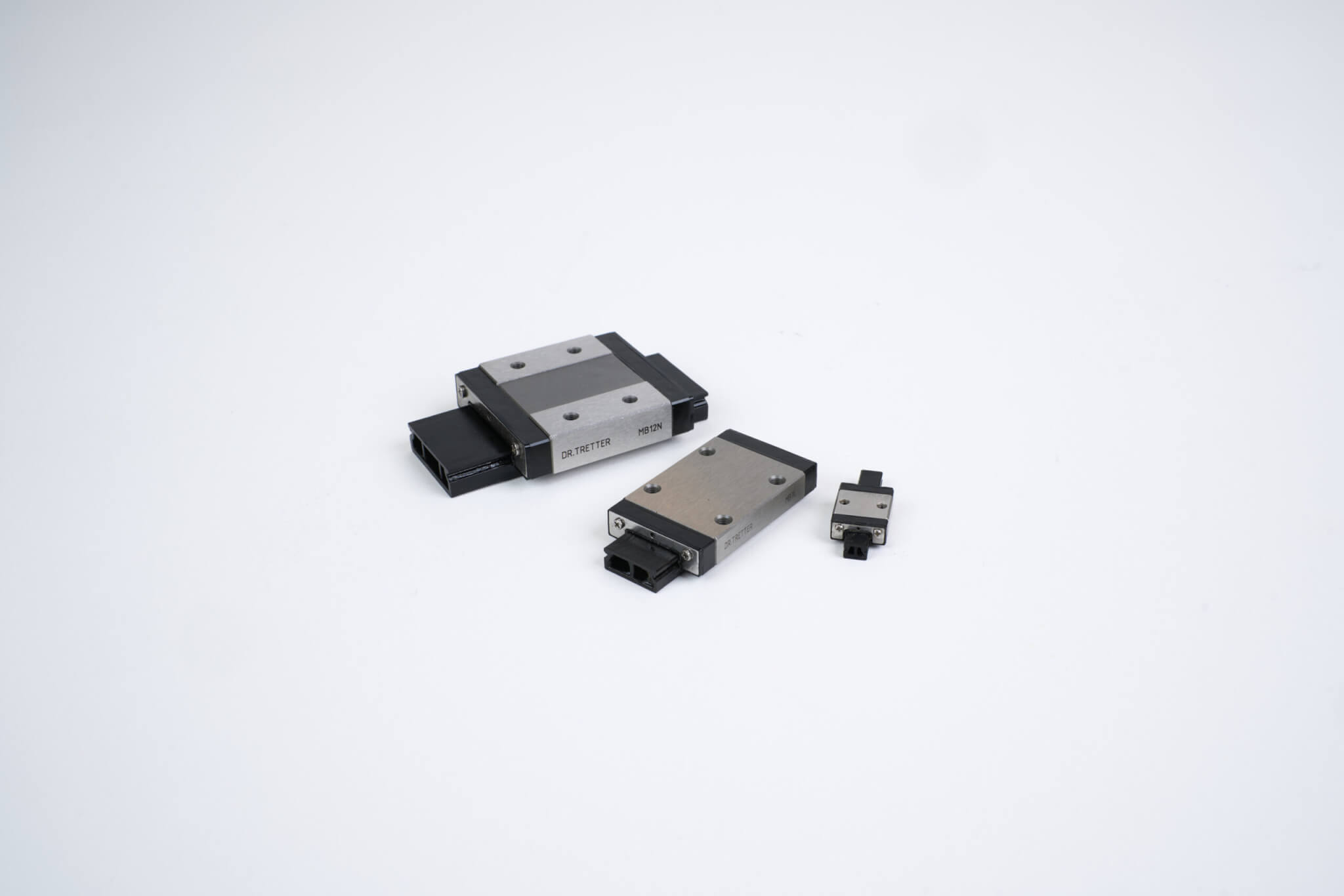

| Carriage type: | Miniature table | Standard | Wide carriage |
Due to their low height, the guides are designed with two rows and are also manufactured from corrosion-resistant material as standard. In principle, the miniature rail guides work on the principle of circulating balls. This means that travel distances of any length can be easily achieved.
Our linear systems ensure reliable motion sequences even in the smallest of spaces.
